ARROW SPRAY GUN MODELS
Arrow Spray Gun CM16
Product Over view
| Voltage/Frequency/ Watts/Current: | 110V / 220V AC 50 / 60 Hz 60W/600mA | Solvent Spill Proof System: | Yes |
| Insulation: | Class 1 Type | Jar Capacity: | 700 ml |
| Extended Nozzle: | No | Output per Second (Ml): | 1.5ml |
| Spray Type: | Fixed Straight Line High Velocity Spray | Output Pressure: | 1900 psi |
| Pressure Adjustment: | Possible | Rated Usage / Rest Time: | 15 Sec On / 30 Sec Off |
| Earthed: | Yes | Pilferproof Shrink Packed: | Yes |
| Electric Plug / Wire Length: | 3 pin / 3 metres | Package includes: | 1 Unit Spray Gun with free spares |
| Fuse Protection: | Yes - Replaceable Glass Fuse 5x20mm ; 800mA | Identification Unique Serial Number: | Yes |
| Body: | Flame Retardant Glass Filled Nylon | Security Genuine Product Hologram: | Affixed |
| Inductor Coil: | Flame Retardant Glass Filled Nylon and High Temperature Resistant Copper Wire, Special Electrical Steel | Unit Weight - Dry / With Solvent: | 1.2 kgs / 1.7 kgs |
| Switch (Press to On / Release to Off): | Flame Retardant Plastic with Copper Contacts | Unit Weight - One Pc Packed: | 1.45 kgs |
| Internal Wiring: | Heat Resistant Teflon Coated Wire of 600V Rating | Pcs / Carton: | 10 |
| Cylinder Assembly: | Special Bronze alloy with Superfinished Piston Bore | Carton Weight: | 16.2 kgs |
| Piston: | Hardchromed & Superfinished SS | Carton Size: | 75x27x52cms |
| Solvent: | As suitable to the application other than Flammable Solvents | Country of Origin: | India |

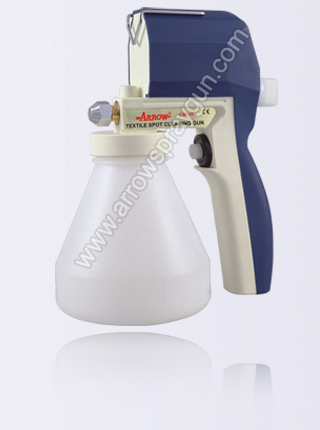

Arrow Spray Gun CM16 is one of the best plastic body spray guns available in the market today. The body of this spray gun is made of 'Flame Retardant Glass Filled Nylon' and is 'CE' certified.
The pressure of spray can be adjusted as per user requirement. This is a light weight spray gun, weighing about 1.45 Kgs. It is electrically operated and has a fuse protection feature. A set of free spare parts are also supplied along with each piece of spray gun. It is safe to use only the recommended chemicals in spray gun for long life of spray gun nozzle and piston. Please go through the specification table given below for further detailed information.
