ARROW SPRAY GUN MODELS
Arrow Spray Gun CM11A
Product Over view
| Voltage/Frequency/ Watts/Current: | 110V / 220V AC 50 / 60 Hz 60W/600mA | Solvent Spill Proof System: | Yes |
| Insulation: | Class 1 Type | Jar Capacity: | 850ml |
| Extended Nozzle: | Yes (Bent at 30 deg) | Output per Second (Ml): | 1.65ml |
| Spray Type: | Adjustable from Mist spray to Straight Line High Velocity Spray | Output Pressure: | 2400 psi |
| Pressure Adjustment: | Possible | Rated Usage / Rest Time: | 15 Sec On / 30 Sec Off |
| Earthed: | Yes | Pilferproof Shrink Packed: | Yes |
| Electric Plug / Wire Length: | 3 pin / 3 metres | Package includes: | 1 Unit Spray Gun with free spares |
| Fuse Protection: | Yes - Replaceable Glass Fuse 5x20mm ; 800mA | Identification Unique Serial Number: | Yes |
| Body: | Mirror Finished Impact Resistant Aluminium | Security Genuine Product Hologram: | Affixed |
| Inductor Coil: | Flame Retardant Glass Filled Nylon and High Temperature Resistant Copper Wire, Special Electrical Steel | Unit Weight - Dry / With Solvent: | 1.5 kgs / 2.1 kgs |
| Switch (Press to On / Release to Off): | Flame Retardant Plastic with Copper Contacts | Unit Weight - One Pc Packed: | 1.79 kgs |
| Internal Wiring: | Heat Resistant Teflon Coated Wire of 600V Rating | Pcs / Carton: | 10 |
| Cylinder Assembly: | Special Bronze alloy with Superfinished Piston Bore | Carton Weight: | 20 kgs |
| Piston: | Hardchromed & Superfinished SS | Carton Size: | 75x27x52cms |
| Solvent: | As suitable to the application other than Flammable Solvents | Country of Origin: | India |

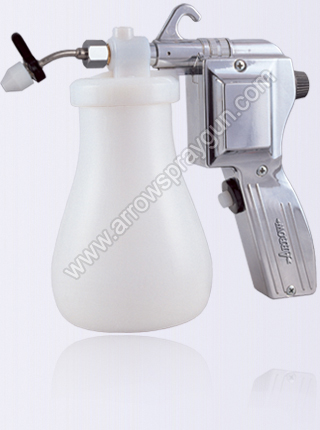

Arrow spray gun CM11A is the best metal body spray gun which is fitted with adjustable nozzle. The body is very strong as it is made of impact resistance aluminium. The speciality of this spray gun is, the spray can be adjusted from mist-type spray, to a straight line type of a spray as well. The pressure output of the spray can also be adjusted as reqiured. It is electrically operated and is fitted with a fuse protection system. Each unit of spray gun is certified 'CE' and weighs about 1.79 Kgs.
A set of free spare parts are also packed along with each unit of spray gun. It is safe to use only the reccommended chemicals in spray gun for long life of spray gun nozzle and piston. Please go through the below specification table for further detailed information of the Arrow Spray Gun CM11A model.
