ARROW SPRAY GUN MODELS
Arrow Spray Gun CM16 A
Product Over view
| Voltage/Frequency/ Watts/Current: | 110V / 220V AC 50 / 60 Hz 60W/600mA | Solvent Spill Proof System: | Yes |
| Insulation: | Class 1 Type | Jar Capacity: | 700ml |
| Extended Nozzle: | Yes (Bent at 30 deg) | Output per Second (Ml): | 1.65ml |
| Spray Type: | Adjustable from Mist spray to Straight Line High Velocity Spray | Output Pressure: | 2400 psi |
| Pressure Adjustment: | Possible | Rated Usage / Rest Time: | 15 Sec On / 30 Sec Off |
| Earthed: | Yes | Pilferproof Shrink Packed: | Yes |
| Electric Plug / Wire Length: | 3 pin / 3 metres | Package includes: | 1 Unit Spray Gun with free spares |
| Fuse Protection: | Yes - Replaceable Glass Fuse 5x20mm ; 800mA | Identification Unique Serial Number: | Yes |
| Body: | Flame Retardant Glass Filled Nylon | Security Genuine Product Hologram: | Affixed |
| Inductor Coil: | Flame Retardant Glass Filled Nylon and High Temperature Resistant Copper Wire, Special Electrical Steel | Unit Weight - Dry / With Solvent: | 1.5 kgs / 2.1 kgs |
| Switch (Press to On / Release to Off): | Flame Retardant Plastic with Copper Contacts | Unit Weight - One Pc Packed: | 1.79 kgs |
| Internal Wiring: | Heat Resistant Teflon Coated Wire of 600V Rating | Pcs / Carton: | 10 |
| Cylinder Assembly: | Special Bronze alloy with Superfinished Piston Bore | Carton Weight: | 20 kgs |
| Piston: | Hardchromed & Superfinished SS | Carton Size: | 75x27x52cms |
| Solvent: | As suitable to the application other than Flammable Solvents | Country of Origin: | India |

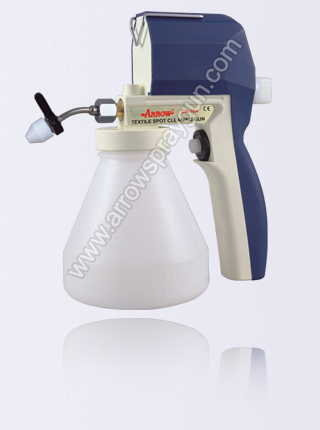

Arrow Spray Gun CM16A is one of the best plastic body spray gun available, which is fitted with an adjustable spray nozzle. The adjustable spray nozzle allows this unit to not only spray a straight line fine and thin spray, but it also gives the user the option to spray the chemical or liquid inside in a mist type of spray. This spray gun is also 'CE' certified. The body of this spray gun is made of Flame Retardant Glass Filled Nylon raw material and it also has a protective glass fuse system.
This spray gun weighs about 1.5 Kgs, and it is electrically operated. A set of free spare parts are packed along with every piece of spray gun. It is only recommended to use such chemicals in spray gun, as suggested by your fabric specialist for cleaning purpose and for long life of spray gun and the spray gun nozzle. Please go throug the specification table given below for detailed information on arrow cm16a spray gun.
